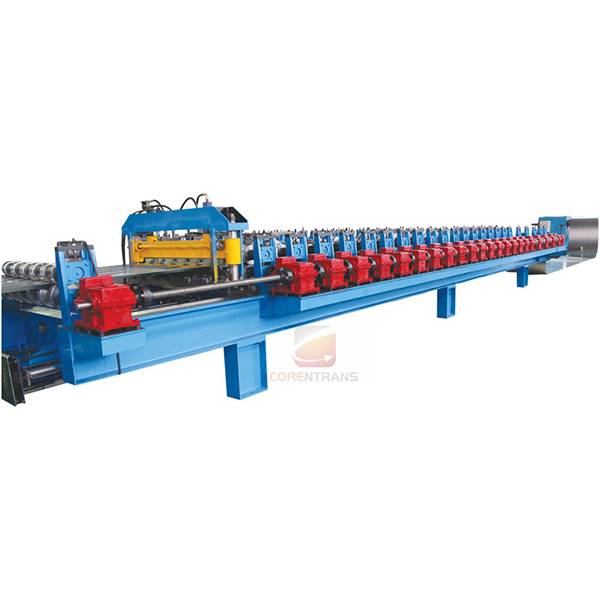

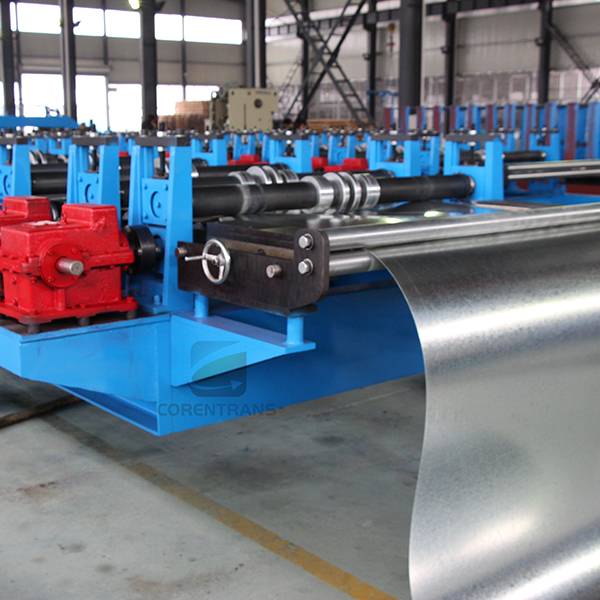

HIGH SPEED ROOFING PANEL ROLL FORMING MACHINE

share
WeChat
Sina Weibo
QQ
QQ space
Douban
Baidu Post Bar
sales@corentrans.com
Detail

Introduction of product operation steps

Profile drawing:

The chart of process flow:

2

10T Hydraulic Uncoiler—Roll Forming—Track cutting—Auto stacker

Product parameters

1Coil width1250mm
2Rolling Speed0-35m/min
3Rolling Thickness0.3-0.8mm
4Control SystemPLC (Panasonic) as list in the note
5Un Coiler5T hydraulic de-coiler
6Roller Stations20 stations
7Roller MaterialASTM1045 chrome plated surface with chrome
8Shaft Material and DIA￠76mm material:45# with quenching and tempering

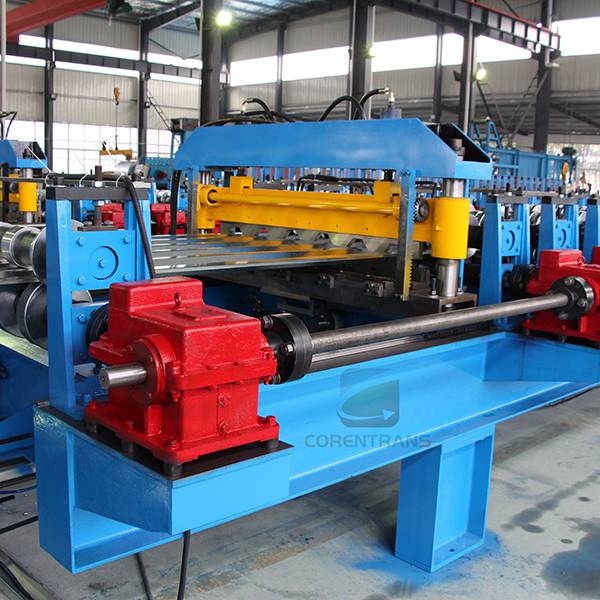

9Post track cuttingThe main machine won’t stop when cutting, 2.9kw servo motor
10Maim Motor Power15kw
11Hydraulic Station Power5.5kw with storage tank and air cooling system
12Hydraulic Pressure12-16Mpa adjustable
13Material Of CuttingCR12with heat treatment
14Structure Of The StationsIron cast
15Tolerance3m+-1.5mm
16Electric Source380V, 50HZ,3 phaseAccording to customer’s require

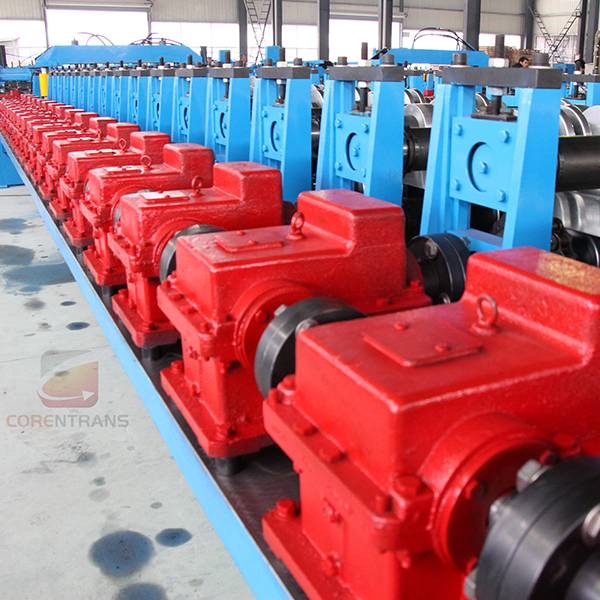

17Way Of DriveBy gear box
