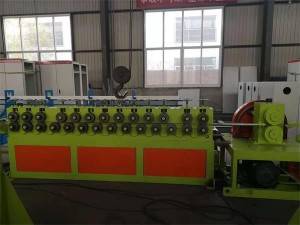

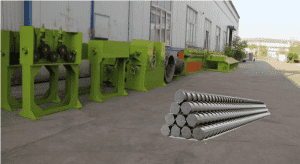

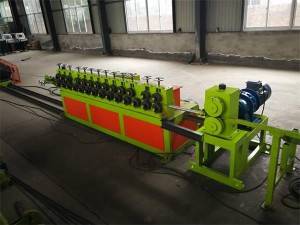

COLD ROLLED RIBBING MACHINE

share
WeChat
Sina Weibo
QQ
QQ space
Douban
Baidu Post Bar
sales@corentrans.com
Detail

Product introduction

Product

Pictures

Quantity

(Set)

Specification

Cannon Type Wiring Pay off

333

1

Raw material discharge rack with a load capacity of 3 tons.
Derusting Reducing Mill Machine

444

1

Phosphorus removal machine to remove raw material surface oxide scale make its wire into the rolling mill smoothly.
Reducing Cold-rolling Mill Machin555

1

Roll the raw steel into oval shape for the first cold rolling.
Main Rolling Mill Machine666

1

Adjustable rib height and diameter of steel bar with electric pressure.The roll is made of tungsten carbide and can produce tens of thousands of tons of steel.Rolling speed : 120 m /minMaximum inlet line: 5.5mm-13mmDiameter of finished product: 5mm-12mm.

Product

Pictures

Quantity

(Set)

Remark

Flying shear cutting machine

777

1

17KWCNC servo flying shear motor, synchronous motor
Hydraulic Spooler Take-up

888

1


Control Cabinet

999

1

Digital control
Straightening Machine

101

1

Multi-wheel straightening machine to straighten finished products.Multi-wheel small diameter and high frequency straightening method to straighten the finished product.Number of straightening wheels: 24
Rack

102

1


Pneumatic Packing Machine

103

1

Packing Strip width: 14/16mmStrip thickness: 0.38-0.8mmWeight: 5KGPneumatic pressure: 0.42-0.6MpaTension speed: 0.5m/min
Butt Welding machine

104

1

Motor power: 10KWFunction: Connecting steel bars together

Product advantages

1. Cold Rolled Ribbing Machine is the most developed machine with compact structure, small footprint.

2. Cold Rolled Ribbing Machine is featured by small size, short-distance recycling winding and high capacity.

3. Gearbox Reducer of cold rolling ribbed steel bar is large torque, low noise, durable.

4. Advanced frequency inverter technology can save 40-60% power.

5. Pure steel mill foundry and no cracking.

Product Applications

Cold rolled ribbed steel bars have been widely used in construction projects, highways, airports, municipalities, water and electricity pipelines. The high strength of steel can save construction steel and reduce the cost of construction.

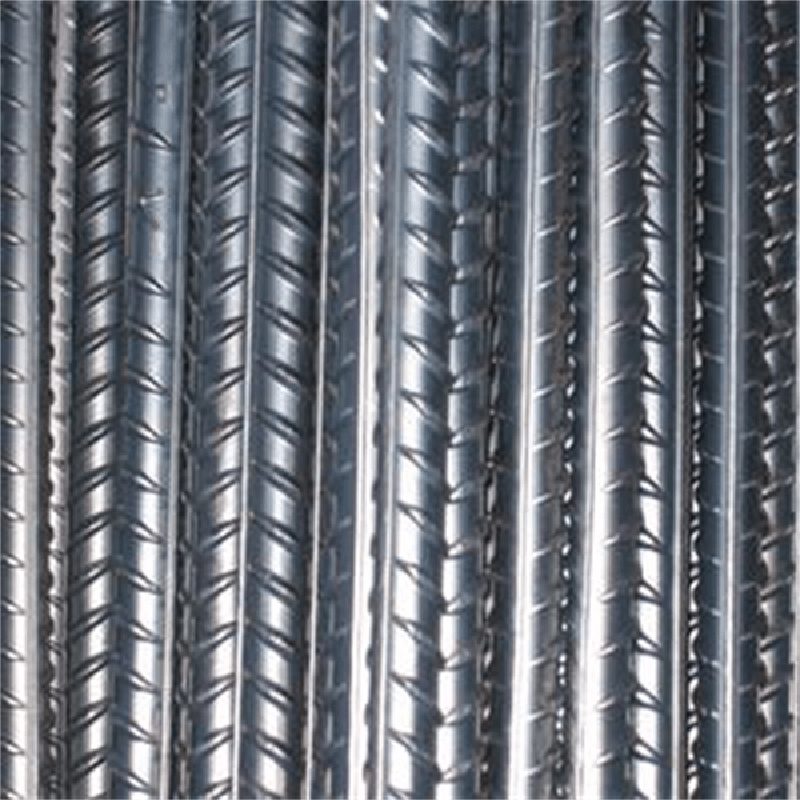

pro (2)

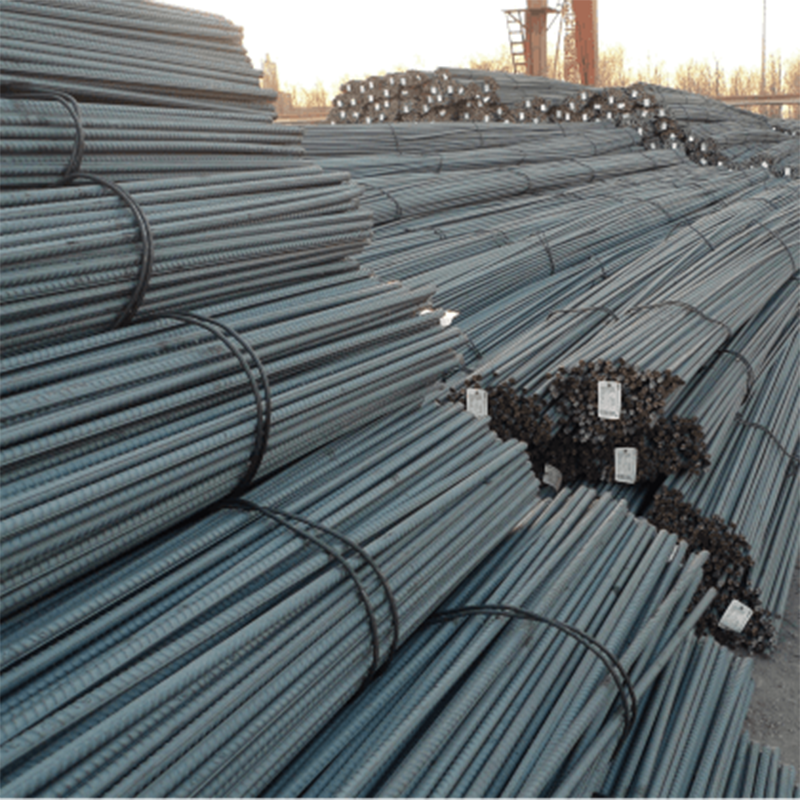

pro (1)

Product Parameters

Item 20000T 30000T 50000T
Maximum steel bar process diameterφ6 -13.5 mmφ6.5 -12 mmφ6 -16 mm
Diameter of finished steel barφ5 -12 mmφ5.5 -11 mmΦ6 -14mm
Straightening speed120 m/min180 m/min190 m/min
Shearing modeFrequency conversion flying shearServo flying shearServo flying shear
Main motor power55-75 KW110 KW130-160 KW
